Inhaler Asthma Spray, CFD Simulation ANSYS Fluent Tutorial
$100.00 Student Discount
- The problem numerically simulates the Inhaler Asthma Spray using ANSYS Fluent software.
- We design the 3-D model by the Design Modeler software.
- We mesh the model with ANSYS Meshing software, and the element number equals 752277.
- We use the discrete phase model (DPM) to define a Spray process.
To Order Your Project or benefit from a CFD consultation, contact our experts via email ([email protected]), online support tab, or WhatsApp at +44 7443 197273.
There are some Free Products to check our service quality.
If you want the training video in another language instead of English, ask it via [email protected] after you buy the product.
Description
Description
This project is related to the numerical simulation of the Inhaler Asthma Spray using Ansys Fluent software.
Shortness of breath is an unpleasant feeling in which a person feels suffocated during activity and feels that they are short of breath and do not get enough oxygen to the body.
Respiratory sprays are used to treat shortness of breath. In general, an inhaler spray is a portable device containing a special medicine that the patient person can inject the medicine into his respiratory tract when he breathes.
In general, an inhaler spray is a portable device containing a special medicine that the patient person can inject the medicine into his respiratory tract when he breathes.
One of the advantages of using sprays is that the drug mainly enters the respiratory tract and lungs and is not absorbed by other body organs. For this reason, they have fewer side effects than oral or injectable drugs.
We modeled the geometry of the project using Design Modeler software. In this modeling, a spray device is designed. In the inner part of this device, we have considered a hole as a place to inject and spray the drug.
Also, we have modeled a space as a computational zone around the spray so that the process of spraying the drug takes place inside it.
Then we meshed the model with Ansys Meshing software. The model mesh is unstructured, and the number of cells is equal to 752277.
Asthma Spray Methodology
In this project, we have simulated the process of spraying drug particles. So we have to use the Lagrangian approach. According to this approach, we should investigate particle by particle in a discrete space.
Then we used the Discrete Phase Model (DPM). Then we have defined an Injection for dispersing discrete particles. The injection type is Surface, and the particle type is Inert. The injection of particles is unsteady and happens within 0.1 seconds.
Asthma Spray Conclusion

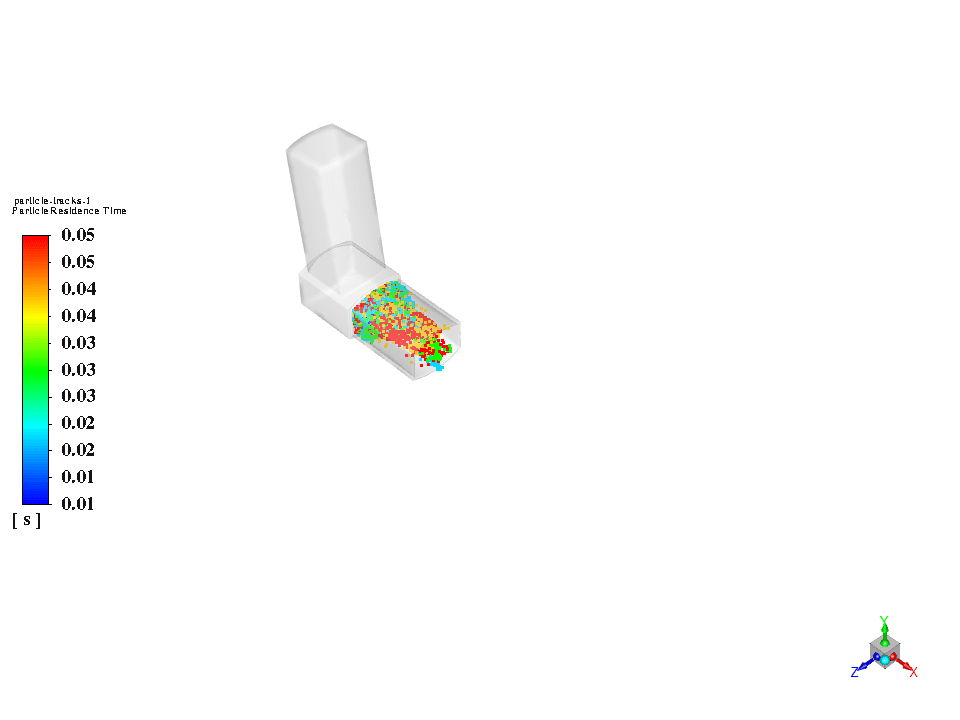

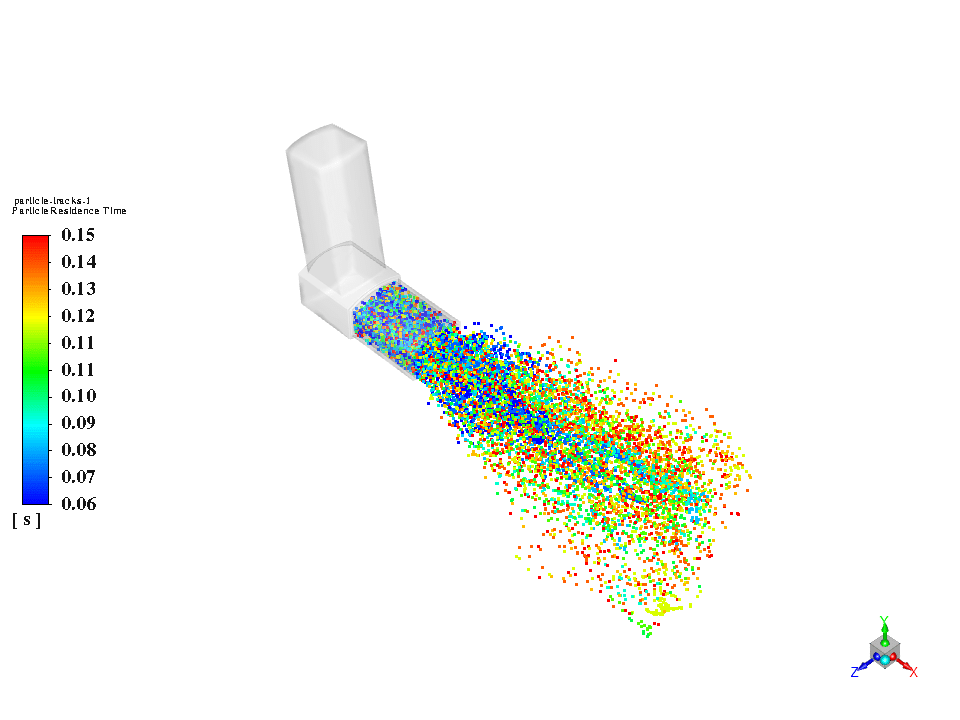

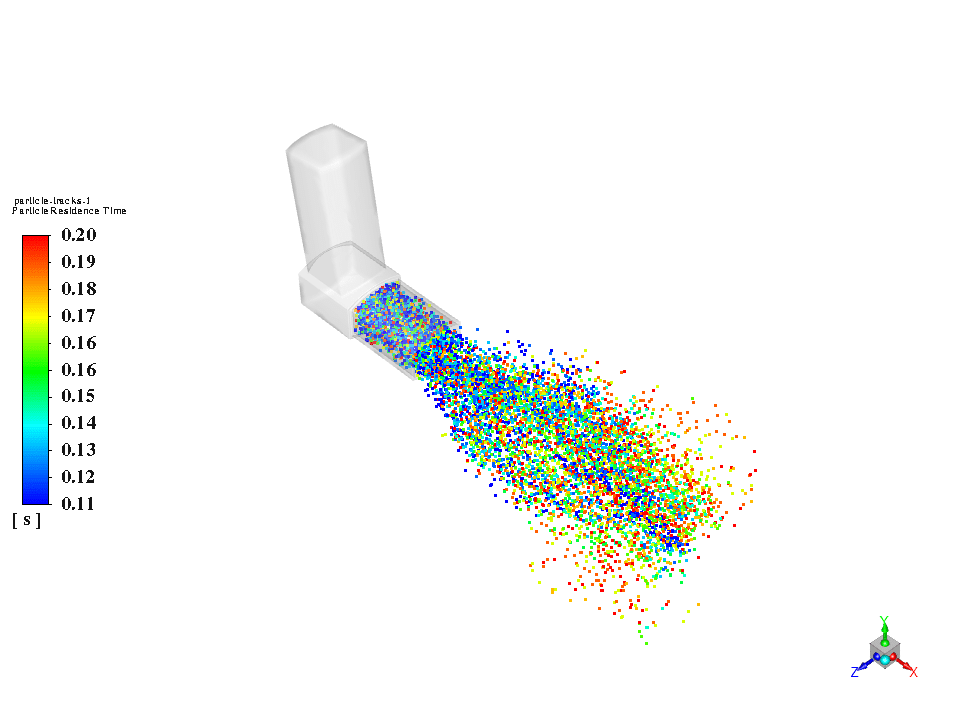

After the solution, we studied particle tracking. At different times, we have investigated particle tracking. We also obtained an animation of particle injection.
By checking the particle over time, the spraying process of this device can be studied. The results show that the simulation is done correctly. This device sprays medicine well.
